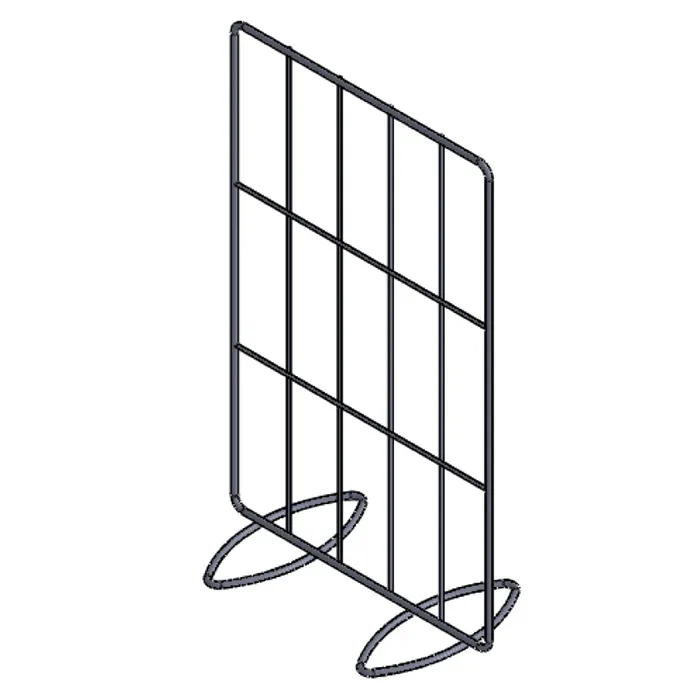

Divider as option

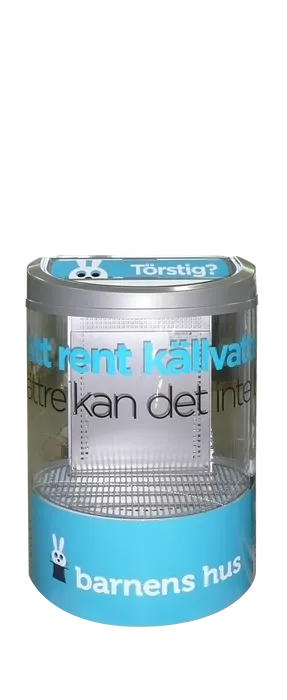

Well suited for graphics

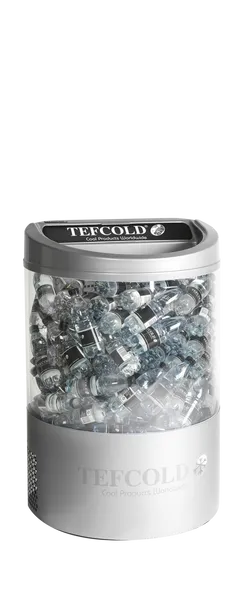

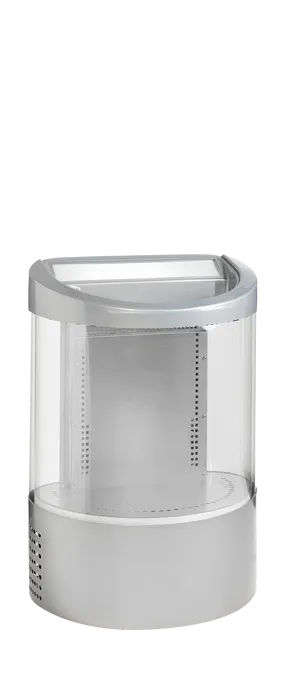

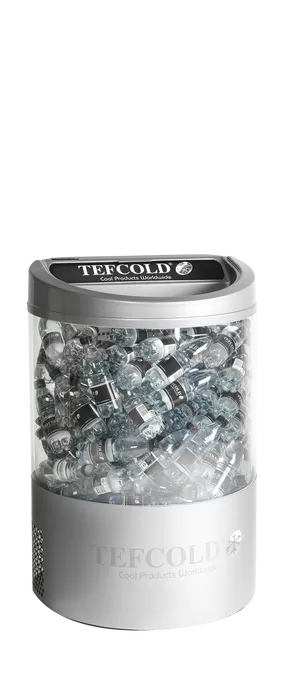

Can Cooler
VOC100
Product.ItemNumber: 15985
Product.Brand: TEFCOLD
- Great product visibility
- LED illuminated canopy
- Well suited for branding
- 7 gliding feet
- Castors optional
- Ventilated cooling
- Fast pull-down of temperature
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Gross / Net Weight31 / 29 kg
- Bottles 330 ml50 pcs
- Bottles 500 ml PET50 pcs
- Cans 330 ml80 pcs
- Cans 500 ml50 pcs
- Temperature Range+2 to +12 °C
- Climate Class4
- Gross / Net Volume110 / 103 l
Design and Material
- Exterior FinishGrey RAL9006
- Interior FinishPowder coated steel, SAC
- Feet / Legs7 gliding feet
- Castors-
- Interior LightLED
- LockNo
- Lid No & Type-
- Divider SystemNo
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- Type of DefrostAutomatic
- RefrigerantR600a
- Refrigerant Charge55 g
- Thermometer
Power and Consumption
- Energy ClassD
- EPREL No497188
- Max Ambient30°C 55% RH
- Annual Energy Cons.949 kWh/year
- Energy Consumption2.6 kWh/24h
- EEI40.6 %
- Input Power160 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level42 dB(A)
Dimensions
- 40ft Container Load 128 pcs
- GTIN / EAN5708181005054
- External Dimension (WxDxH)660 x 460 x 970 mm
- Internal Dimension (WxDxH)520 x 345 x 570 mm

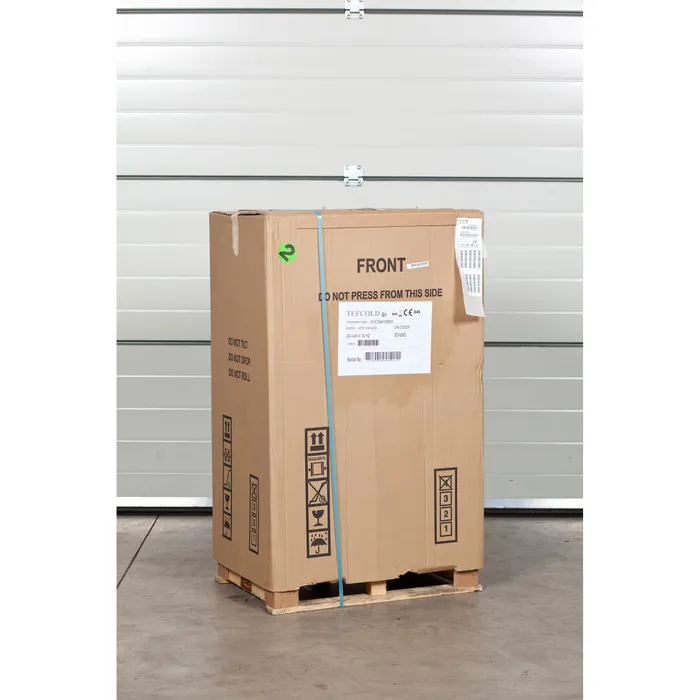

- Packed Dimension (WxDxH)700 x 500 x 1150 mm
ProductDetail.DownloadsHeader
ProductDetail.SparePartsHeader
- 01Product.ItemNumber 11131Inner Lexan 1 mm
- 02Product.ItemNumber 11192Outer Lexan 1 mm
- 03Product.ItemNumber 10369Air Conductor Grey
- 04Product.ItemNumber 15773Insulation Material
- 05Product.ItemNumber 10794Base Plate
- 06Product.ItemNumber 10773Back Panel Grey
- 07Product.ItemNumber 10857Bottom Panel Grey 345 mm
- 08Product.ItemNumber 10795Base Spacers
- 09Product.ItemNumber 10922Compressor Base Plate
- 10Product.ItemNumber 14590Gliding Shoe
- 10
Product.ItemNumber 14677Wheel Without Brake - 11Product.ItemNumber 10285Canopy Plate
- 12
Product.ItemNumber 11291Top Frame - 13Product.ItemNumber 10791Base For Top Frame
- 14
Product.ItemNumber 13969Thermostat Carel PYSN0V00115 - 14
Product.ItemNumber 14060Thermostat XR02CX 2 Probe Blue - 15
Product.ItemNumber 15650LED Strip 580 mm 7000K/7LM - 16
Product.ItemNumber 15612LED Power Supply - 17Product.ItemNumber 14860Base Shelf Grey
- 18Product.ItemNumber 11213Profile For Lexan
- 19Product.ItemNumber 14445Evaporator House
- 20Product.ItemNumber 14453Evaporator Polystyrene
- 21
Product.ItemNumber 14239Evaporator - 22Product.ItemNumber 14423Evaporator Cover Polystyrene
- 23Product.ItemNumber 14424Evaporator Cover Sheet
- 24Product.ItemNumber 11727Compressor HMK12AA R600
- 25
Product.ItemNumber 15729Filter Drier 7.5 G - 26
Product.ItemNumber 13896Probe NTC Dixell/Carel 10 Kohm - 28Product.ItemNumber 11436Drain Hose
- 29Product.ItemNumber 13530Fan Motor Foot
- 30
Product.ItemNumber 13519Fan Motor - 31
Product.ItemNumber 13483Fan Blade 200 mm - 32
Product.ItemNumber 13577Inner Fan - 33
Product.ItemNumber 14091Condenser - 34
Product.ItemNumber 15515Holder For LED Strip - 35
Product.ItemNumber 14777Divider Grey RAL 9006 - 36Product.ItemNumber 14742Base Shelf For Dividers Black
- 36Product.ItemNumber 14743Base Shelf For Dividers Grey
- 36Product.ItemNumber 14744Base Shelf For Dividers White
- 37Product.ItemNumber 14822Small Divider Black
- 37Product.ItemNumber 14823Small Divider Grey
- 37Product.ItemNumber 14824Small Divider White
- 38Product.ItemNumber 14746Big Divider Black
- 38Product.ItemNumber 14747Big Divider Grey
- 38Product.ItemNumber 14748Big Divider White
- 99Product.ItemNumber 38401LED Light Curved 2700K 6,48 W
