Electronic thermostat
Strong castors as option
Storage Cooler
UR550S
Product.ItemNumber: 34069(Product.Substitutes 16096 UR550S)
Product.Brand: TEFCOLD
- Stainless steel cabinet
- Integrated handle
- Electronic thermostat
- Fan assisted cooling
- Adjustable shelves
- Lock
- Adjustable feet with rollers to rear

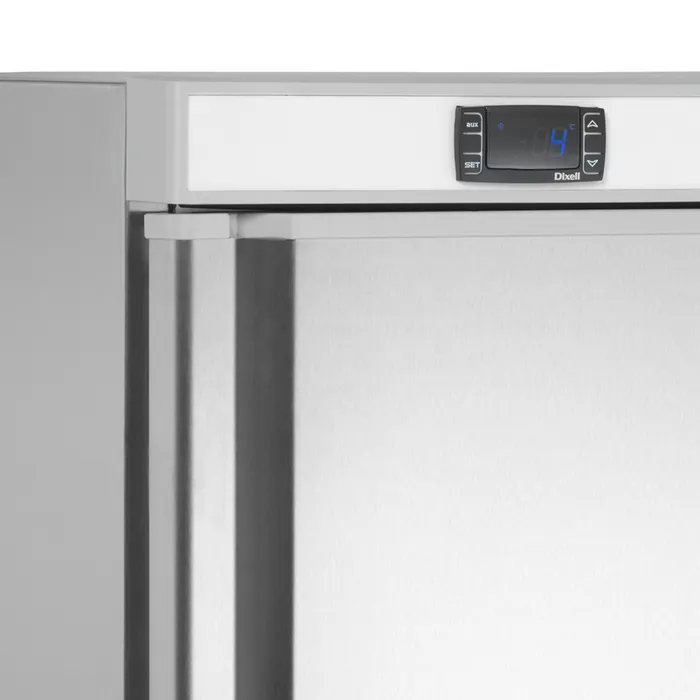

- Digital controller and temperature display
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Gross / Net Weight97 / 90 kg
- Temperature Range+2 to +10 °C
- Gross / Net Volume461 / 420 l
- Climate Class4
Design and Material
- Exterior FinishSS430
- Interior FinishWhite ABS
- Door No & Type1 hinged solid door
- Shelves No & Type4 wire shelves white
- Max load on Shelves110 kg/m²
- Shelf DimensionsGN2/1
- Feet / Legs2 adjustable feet
- Bottom Shelf Dimensions650 x 305
- Shelf ColorWhite
- Castors2 rollers
- Interior LightNo
- Lock
Cooling and Functions
- Type of ControllerElectronic
- Type of DefrostAutomatic
- RefrigerantR600a
- Refrigerant Charge95 g
- Type of CoolingFan assisted
- Thermometer
Power and Consumption
- Max Ambient30°C at 55% RH
- Input Power130 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level45 dB(A)
- Energy ClassC
- EPREL No1843416
- Annual Energy Cons.624 kWh/year
- Energy Consumption1.71 kWh/24h
- EEI48.7 %
Dimensions
- 40ft Container Load 42 pcs
- GTIN / EAN5708181994808
- External Dimension (WxDxH)777 x 715 x 1720 mm
- Internal Dimension (WxDxH)667 x 570 x 1485 mm
- Packed Dimension (WxDxH)850 x 770 x 1890 mm
ProductDetail.DownloadsHeader
ProductDetail.SparePartsHeader
- 01
Product.ItemNumber 12952Top Hinge - 02
Product.ItemNumber 10670Hook Of Lock - 03
Product.ItemNumber 14060Thermostat XR02CX 2 Probe Blue - 04Product.ItemNumber 34880Front panel Grey 2021
- 05
Product.ItemNumber 12857Hinge Axis - 06
Product.ItemNumber 12781Bushing For Diameter 6,6 mm Pin - 07Product.ItemNumber 32775Lock
- 08
Product.ItemNumber 12630Gasket 750x1530 - 09Product.ItemNumber 34884Door SS 2021
- 10
Product.ItemNumber 15028Shelf - 11
Product.ItemNumber 12743Bottom Hinge - 12
Product.ItemNumber 14439Evaporator Fixer - 13
Product.ItemNumber 14261Evaporator - 14
Product.ItemNumber 32623Thermostat XR02CX-5R0C1 - 16
Product.ItemNumber 10874Bottom Panel Hexagonal SS403 - 17
Product.ItemNumber 14555Adjustable Foot - 20
Product.ItemNumber 11728Compressor HPKD190A R600 - 23Product.ItemNumber 13377Condenser Fan Support
- 24Product.ItemNumber 14077Block Condenser
- 25
Product.ItemNumber 11584Water Pan - 26
Product.ItemNumber 11232Rear Grill - 28
Product.ItemNumber 13318Cond./Evap. Fan Rah1238B - 28
Product.ItemNumber 13460Evaporator Fan, March 2014 - 29
Product.ItemNumber 13913Sensor Fixed Clip - 30
Product.ItemNumber 13896Probe NTC Dixell/Carel 10 Kohm - 31Product.ItemNumber 10970Evaporator Fan Cover
- 31
Product.ItemNumber 13545Fan Support - 35
Product.ItemNumber 15082Shelf Clip - 36Product.ItemNumber 15136Shelf Support
- 38Product.ItemNumber 10887Bottom Panel Support
- 40
Product.ItemNumber 10676Keys For Lock
