Soft release night blind / curtain
Adjustable shelves with tilting function

Low open front

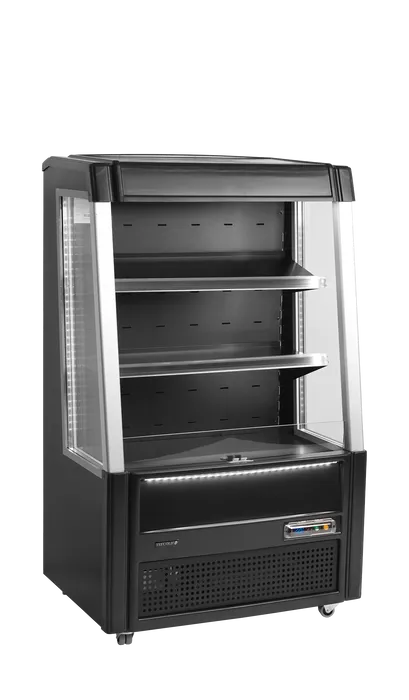

ODC90 BLACK

Product.ItemNumber:31494

Product.Brand:TEFCOLD

Ideal for impulse sales at the cash desk
Ventilated cooling

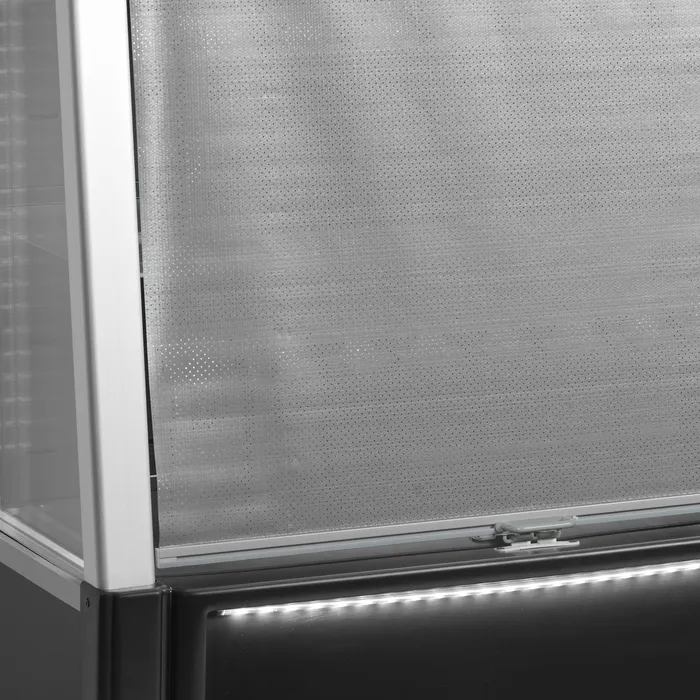

Night blind / Curtain with soft release

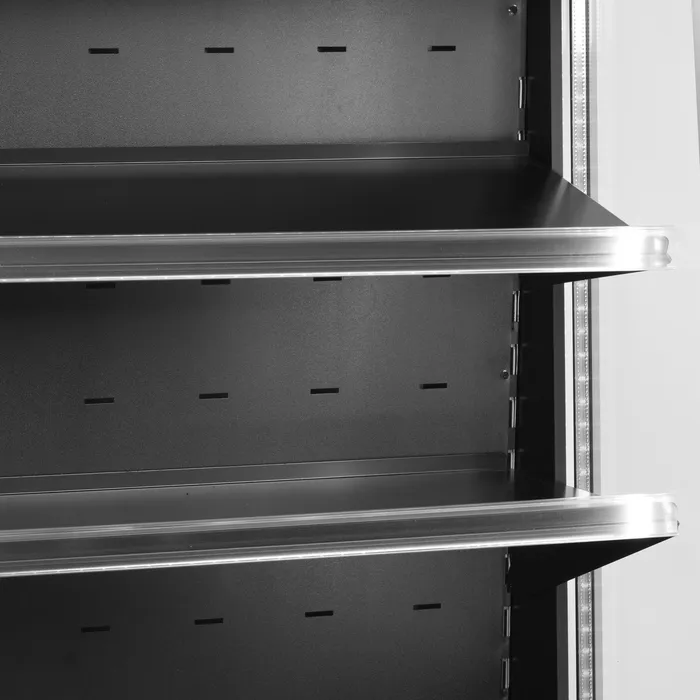

Adjustable shelves with tilting function
LED interior light
Black exterior

Product.EnergyArrow

Product.Downloads.ProductSheet

ProductDetail.TechnicalSpecificationHeader

Measures and Content

Gross / Net Weight
182 / 164 kg
Gross / Net Volume
289 / 242 l
Total Display Area
0.59 m²
Temperature Range
-1 to +7 °C
Climate Class
3
Insulation Density
40 kg/m³

Design and Material

Exterior Finish
Black
Interior Finish
Black
Door No & Type
Open front
Shelves No & Type
2 tilting
Shelf Dimensions
790 * 286 / 336
Feet / Legs
-
Castors
4 castors
Interior Light
LED

Cooling and Functions

Type of Controller
Electronic
Type of Defrost
Automatic
Refrigerant
R290
Refrigerant Charge
130 g
Thermometer

Power and Consumption

Energy Class
F
EPREL No
2715007
Max Ambient
+25°C, 60% RH
Max Running Amps
7,74
Energy Consumption
12.6 kWh/24h
Annual Energy Cons.
4599 kWh/year
EEI
79.17 %
Input Power
2043 W
Voltage / Frequency
220-240/50 V/Hz
Noise Level
55 dB(A)
Display cabinet family
VC2

Dimensions

40ft Container Load
33 pcs
GTIN / EAN
5708181990527
External Dimension (WxDxH)
915 x 640 x 1540 mm
Internal Dimension (WxDxH)
821 x 470 x 870 mm
Packed Dimension (WxDxH)
970 x 710 x 1760 mm

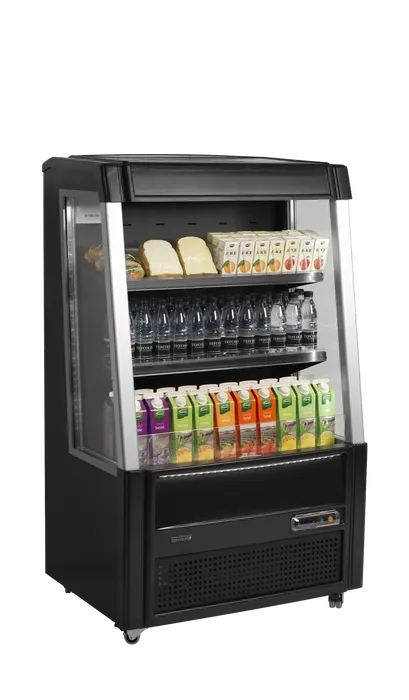

31494 ODC90 BLACK content image
