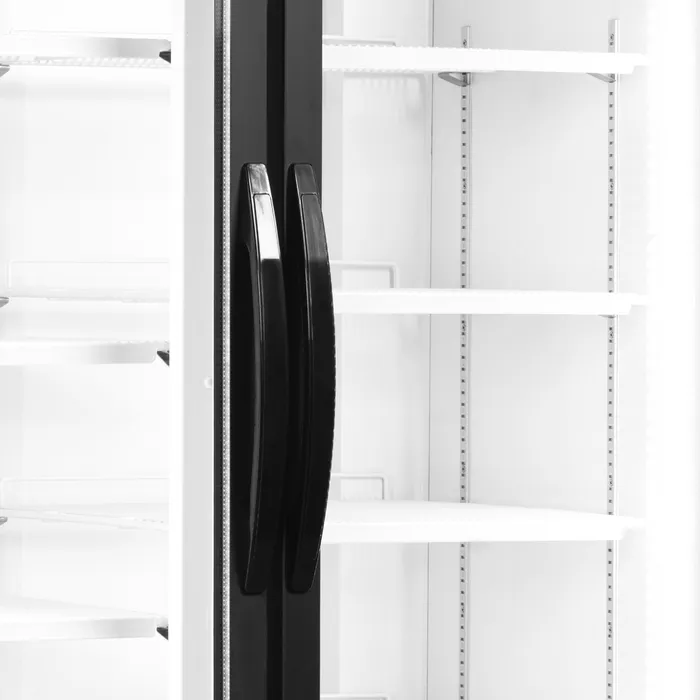

Strong handles

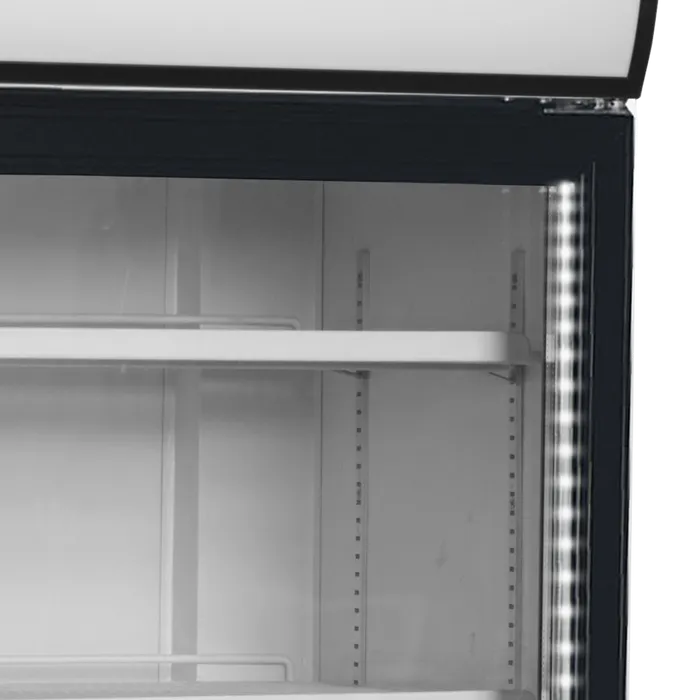

Vertical internal light

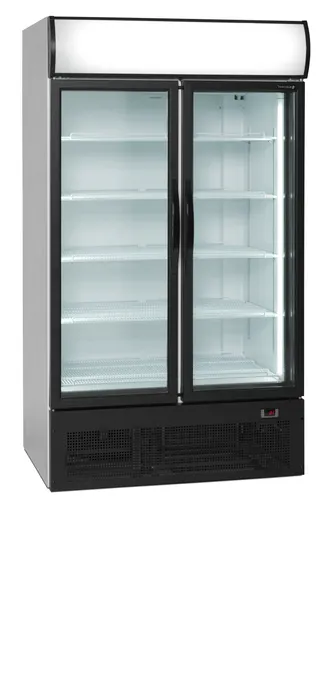

2-door display cooler with canopy
FSC1950H
Product.ItemNumber: 15965
Product.Brand: TEFCOLD
- Illuminated canopy
- Internal vertical light
- Adjustable shelves
- Adjustable feet
- Ventilated cooling
- Hinged alu-framed glass doors
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Gross / Net Weight210 / 200 kg
- Bottles 330 ml560 pcs
- Bottles 500 ml PET560 pcs
- Cans 330 ml1020 pcs
- Cans 500 ml720 pcs
- Temperature Range+2 to +10 °C
- Climate Class4
- Gross / Net Volume875 / 710 l
Design and Material
- Exterior FinishWhite RAL9016
- Interior FinishWhite painted steel
- Door No & Type2 hinged glass doors
- Max load on Shelves196 kg/m²
- Shelf ColorWhite
- Shelf Dimensions985 x 555 mm
- Shelves No & Type5 wire shelves white
- Canopy TypeD-Shape
- Feet / Legs4 adjustable feet
- Castors4 rollers
- Interior Light
- Lock
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- Type of DefrostAutomatic
- RefrigerantR290
- Refrigerant Charge125 g
- Thermometer
Power and Consumption
- Energy ClassF
- EPREL No469912
- Annual Energy Cons.2336 kWh/year
- Energy Consumption6.4 kWh/24h
- EEI66 %
- Input Power490 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level48 dB(A)
Dimensions
- 40ft Container Load 22 pcs
- GTIN / EAN5708181003692
- External Dimension (WxDxH)1110 x 875 x 2010 mm
- Internal Dimension (WxDxH)1000 x 750 x 1533 mm
- Packed Dimension (WxDxH)1180 x 910 x 2100 mm
ProductDetail.DownloadsHeader
ProductDetail.LongDescriptionHeader
ProductDetail.SparePartsHeader
- 01Product.ItemNumber 10342Top Cover For Canopy
- 02Product.ItemNumber 10212Canopy Base
- 03
Product.ItemNumber 12728Base For Hinge - 04
Product.ItemNumber 15632LED Power Supply 12VDC 60W - 05
Product.ItemNumber 15528LED 900 mm - 6500K - 06
Product.ItemNumber 10243Canopy End Cover Left/Right - 07
Product.ItemNumber 10268Canopy Light Plate - 08
Product.ItemNumber 14899Clip For Shelf - 09Product.ItemNumber 10416Cover For Internal Tubes
- 10Product.ItemNumber 15001Rails For Shelves
- 11
Product.ItemNumber 15354Cover For Vertical.Fl.Tube - 12
Product.ItemNumber 15344Clip For Light Cover - 13
Product.ItemNumber 15637LED Strip 1200 mm - 6500k - 14
Product.ItemNumber 10919Center Post Plastic - 15
Product.ItemNumber 10396Center Post Cover - 16
Product.ItemNumber 14197Exchanger - 17
Product.ItemNumber 14319Evaporator - 18Product.ItemNumber 14217Cover For Evaporator Unit
- 19
Product.ItemNumber 13446Evaporator Fan Motor 1300 Rpm - 20
Product.ItemNumber 13970Thermostat Carel PZPU - 21
Product.ItemNumber 13737Light Switch - 22
Product.ItemNumber 13439Evaporator Fan Frame - 23
Product.ItemNumber 13556Finger Guard - 24Product.ItemNumber 13494Fan Blade Ø200 5 Wings
- 25
Product.ItemNumber 13443Evaporator Fan Group - 26Product.ItemNumber 34422Glass Door hinged w/lock Right 2021
- 26B
Product.ItemNumber 10715Lock With Keys - 31
Product.ItemNumber 12019Door Gasket - 32Product.ItemNumber 12944Spring Hinge Right
- 35Product.ItemNumber 34433Glass Door hinged w/lock Left 2021
- 36
Product.ItemNumber 12808Door Hinge Bracket - 37
Product.ItemNumber 12853Hinge - 38
Product.ItemNumber 12863Hinge Bush - 39
Product.ItemNumber 12693Handle Black/Black - 40
Product.ItemNumber 14087Condenser - 41
Product.ItemNumber 11243Cover For Screw - 42
Product.ItemNumber 10846Bottom Panel - 43
Product.ItemNumber 13488Fan Blade 25 cm (Condenser) - 44
Product.ItemNumber 13525Fan Motor Bracket - 45
Product.ItemNumber 13529Fan Motor Div. Use/Condenser - 46
Product.ItemNumber 11478Drip Tray - 48
Product.ItemNumber 13896Probe NTC Dixell/Carel 10 Kohm - 51Product.ItemNumber 10910Bracket For Front Grill
- 52
Product.ItemNumber 14570Adjustable Foot - 53Product.ItemNumber 11774Compressor NEU6214U R290
- 55
Product.ItemNumber 15700Filter Drier - 57
Product.ItemNumber 14618Roller - 58Product.ItemNumber 15216Wire Shelf Bottom
- 59
Product.ItemNumber 11154Louvered Plate Rear - 60
Product.ItemNumber 15234Wire Shelf Upper
