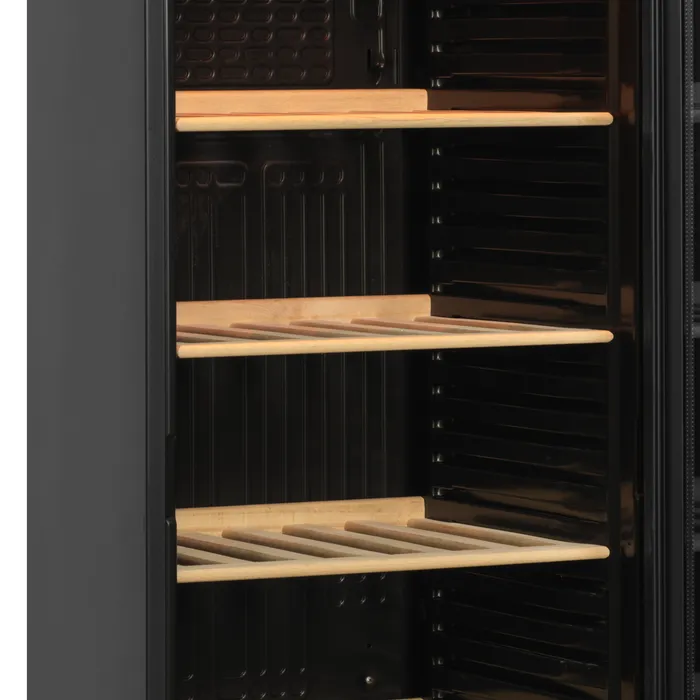

Adjustable shelves

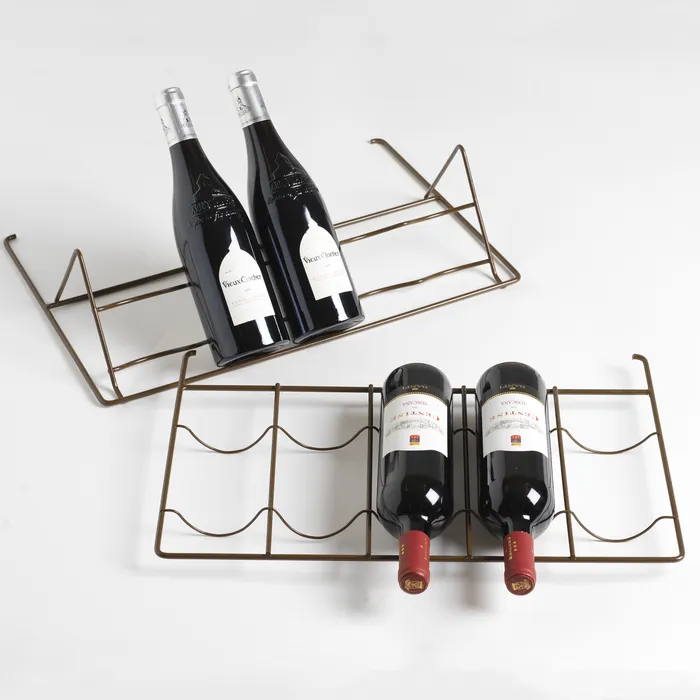

Presentation shelves available as option

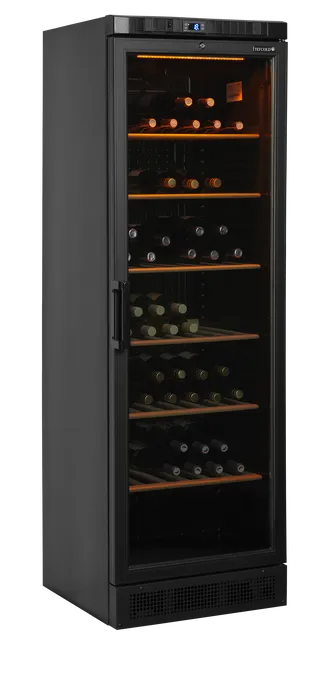

Display Cooler Suitable for Wine
CPV1380E
Product.ItemNumber: 37800(Product.Substitutes 16103 )
Product.Brand: TEFCOLD
- Hinged glass door
- 1 temperature zone
- LED light
- Adjustable shelves
- Tinted glass door for protection of wine
- Reversible door
- Black interior and exterior
- Lock
- Presentation shelves available as option
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Gross / Net Weight83 / 78 kg
- Temperature Range+1 to +18 °C
- Climate Class4
- Gross / Net Volume372 / 350 l
- Wine Bottles 750 ml118 pcs
Design and Material
- Exterior FinishBlack
- Interior FinishBlack ABS
- Door No & Type1 hinged glass door
- Shelf Dimensions490 x 360 mm
- Shelves No & Type6 wooden wine shelves
- Feet / Legs2 adjustable feet
- Interior LightLED
- Lock
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingFan assisted
- Type of DefrostAutomatic
- RefrigerantR600a
- Refrigerant Charge70 g
- Thermometer
Power and Consumption
- Energy ClassD
- EPREL No1109904
- Max Ambient30°C 55% RH
- Annual Energy Cons.713.58 kWh/year
- Energy Consumption1.96 kWh/24h
- EEI44.9 %
- Input Power180 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level42 dB(A)
Dimensions
- 40ft Container Load 54 pcs
- GTIN / EAN5708181706098
- External Dimension (WxDxH)595 x 640 x 1840 mm
- Internal Dimension (WxDxH)470 x 440 x 1555 mm
- Packed Dimension (WxDxH)680 x 710 x 1940 mm
ProductDetail.DownloadsHeader
ProductDetail.LongDescriptionHeader
ProductDetail.SparePartsHeader
- 01
Product.ItemNumber 12961Top Hinge Base Left/Right - 02
Product.ItemNumber 12911Pin For Hinge - 03
Product.ItemNumber 13835Control Panel SCU Black - 04Product.ItemNumber 10415Cover For Electronic Thermosta
- 05
Product.ItemNumber 13731Cover For Switch, SCU Panel - 06
Product.ItemNumber 10043Cover For Screw, SCU Panel - 09Product.ItemNumber 34455Probe NTC Dixell 10 Kohm 2000 mm.
- 10
Product.ItemNumber 13737Light Switch - 12
Product.ItemNumber 15510End Cap LED Light - 13
Product.ItemNumber 15597LED Light Base - 14
Product.ItemNumber 15647LED Strip 390 mm 2700K/13LM - 15
Product.ItemNumber 15600LED Light Cover - 16
Product.ItemNumber 13531Fan Motor Int/Ext - 17Product.ItemNumber 13513Fan Cover Black, No Thermostat
- 21
Product.ItemNumber 15249Wooden Shelf 496x385 - 22Product.ItemNumber 14346Evaporator Black
- 23
Product.ItemNumber 13967Thermostat Carel PJEZSNP000K - 23Product.ItemNumber 43527Thermostat EwPlus961
- 24
Product.ItemNumber 12732Bottom Hinge - 26
Product.ItemNumber 12863Hinge Bush - 27
Product.ItemNumber 10817Bottom Grill Black Hex - 31
Product.ItemNumber 10721Lock With Keys - 34
Product.ItemNumber 12064Door Gasket Black 585x1620 - 36
Product.ItemNumber 11953Door Black Frame And Gasket - 37
Product.ItemNumber 12808Door Hinge Bracket - 38
Product.ItemNumber 12700Handle Curved Black - 40
Product.ItemNumber 11442Drain Pipe - 41
Product.ItemNumber 15721Filter Drier 20 G - 46Product.ItemNumber 11735Compressor HXK55AA R600A
- 48
Product.ItemNumber 14614Pin For Big Roller - 49
Product.ItemNumber 14608Big Roller - 51
Product.ItemNumber 11470Drip Tray - 52
Product.ItemNumber 11123Grill Cover For Fan Motor - 53Product.ItemNumber 11238Rear Grill Black
- 55
Product.ItemNumber 14570Adjustable Foot - 57
Product.ItemNumber 14199Holder For Condenser 2015 - 58
Product.ItemNumber 14079Condenser - 61
Product.ItemNumber 15631LED Power Supply 12V 18W - 62
Product.ItemNumber 15347Cover For Ballast
