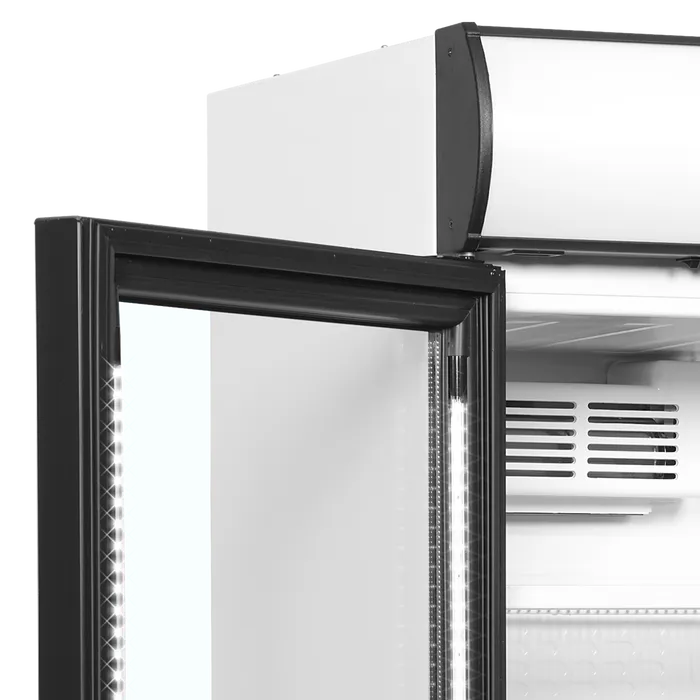

LED light inside door frame

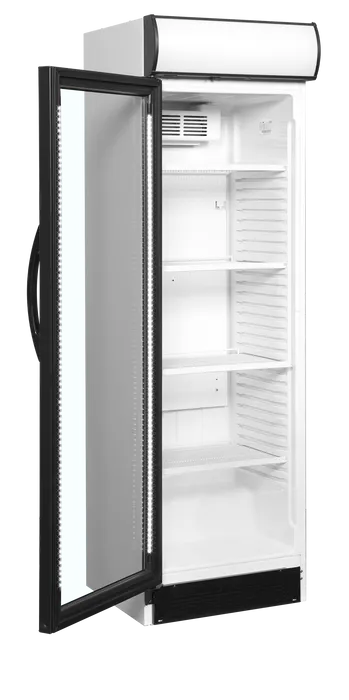

Left hinged glass door

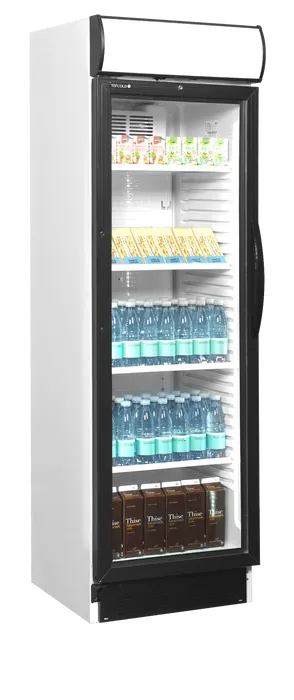

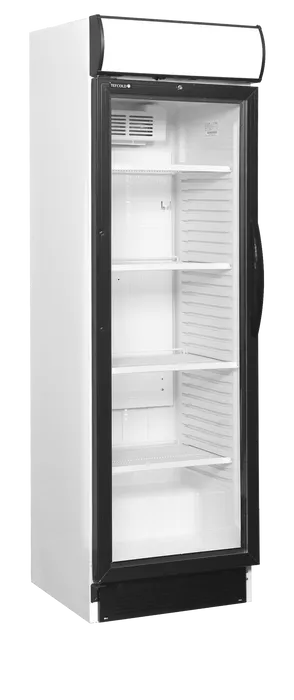

Bottle Cooler, Left Hinged

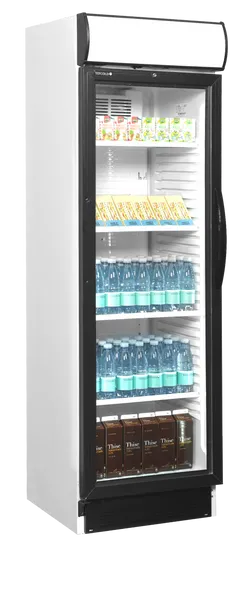

CEV425CP 2 LED L/H
Product.ItemNumber: 43882
Product.Brand: TEFCOLD
- Left hinged glass door
- Great product presentation
- Illuminated canopy
- Ideal for branding
- LED light in door frame
- Adjustable shelves
- Fan assisted cooling
- Reversible door (spare part 12850 needed)
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Gross / Net Weight83 / 78 kg
- Bottles 330 ml213 pcs
- Bottles 500 ml PET174 pcs
- Cans 330 ml357 pcs
- Cans 500 ml231 pcs
- Temperature Range+2 to +10 °C
- Climate Class4
- Gross / Net Volume358 / 345 l
Design and Material
- Exterior FinishWhite
- Interior FinishWhite
- Door No & Type1 left hinged glass door
- Max load on Shelves196 kg/m²
- Shelf ColorWhite
- Shelf Dimensions490 x 360 mm
- Shelves No & Type4 wire shelves white
- Canopy TypeD-Shape
- Feet / Legs2 adjustable feet
- Castors2 rollers
- Interior LightLED inside door frame
- Lock
Cooling and Functions
- Type of ControllerMechanical
- Type of CoolingFan assisted
- Type of DefrostAutomatic
- RefrigerantR600a
- Refrigerant Charge70 g
- Thermometer
Power and Consumption
- Energy ClassD
- EPREL No605352
- Max Ambient30°C 55% RH
- Annual Energy Cons.821 kWh/year
- Energy Consumption2.25 kWh/24h
- EEI49.7 %
- Input Power295 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level45 dB(A)
Dimensions
- 40ft Container Load 54 pcs
- GTIN / EAN5708181711399
- External Dimension (WxDxH)595 x 640 x 1980 mm
- Internal Dimension (WxDxH)470 x 440 x 1555 mm
- Packed Dimension (WxDxH)665 x 715 x 2150 mm
ProductDetail.DownloadsHeader
ProductDetail.LongDescriptionHeader
ProductDetail.SparePartsHeader
- 01
Product.ItemNumber 12911Pin For Hinge - 02
Product.ItemNumber 14079Condenser - 03
Product.ItemNumber 14199Holder For Condenser 2015 - 04Product.ItemNumber 13632Cover For Wiring
- 05
Product.ItemNumber 10483Top Cover White - 06
Product.ItemNumber 10221Canopy Base Black - 07
Product.ItemNumber 12961Top Hinge Base Left/Right - 08
Product.ItemNumber 15629LED Power Supply 12 V 35 W - 09
Product.ItemNumber 15650LED Strip 580 mm 7000K/7LM - 10
Product.ItemNumber 10318Left/Right Side Cover Canopy - 11
Product.ItemNumber 10308Cover For Canopy Opal - 13
Product.ItemNumber 15515Holder For LED Strip - 14
Product.ItemNumber 13737Light Switch - 15
Product.ItemNumber 13644Green Control Lamp - 17
Product.ItemNumber 13531Fan Motor Int/Ext - 18
Product.ItemNumber 13390Cover For Internal Fan - 19
Product.ItemNumber 13998Thermostat K50B-S16176 R600 - 20
Product.ItemNumber 14023Thermostat Knob FS - 21Product.ItemNumber 33379Digital Thermometer w/Black Frame
- 24
Product.ItemNumber 15643LED Strip 1464 mm For Door - 25
Product.ItemNumber 14488Roll Bond Evaporator White - 26
Product.ItemNumber 15228Wire Shelf For Print 490x360 White - 27
Product.ItemNumber 12852Bottom Hinge Right - 28
Product.ItemNumber 12786Bushing For Hinge With Wires - 29
Product.ItemNumber 11341Ventilation Grill Bottom Black - 30
Product.ItemNumber 11243Cover For Screw - 31
Product.ItemNumber 11121Grill Cover For Comp. Compart. - 32Product.ItemNumber 14198Fixing Clamp For Condenser
- 33
Product.ItemNumber 11470Drip Tray - 34
Product.ItemNumber 14614Pin For Big Roller - 35
Product.ItemNumber 14608Big Roller - 36Product.ItemNumber 33343Compressor TT1117GY R600a
- 37
Product.ItemNumber 14570Adjustable Foot - 39
Product.ItemNumber 15721Filter Drier 20 G - 40
Product.ItemNumber 11442Drain Pipe - 41
Product.ItemNumber 12700Handle Curved Black - 43
Product.ItemNumber 10721Lock With Keys - 46
Product.ItemNumber 12064Door Gasket Black 585x1620 - 48
Product.ItemNumber 12133Door Reversible With 2 LED - 64Product.ItemNumber 16744Bottom Hinge Pin For Wires Left
- 65
Product.ItemNumber 12755Bottom Hinge For Wires Left
