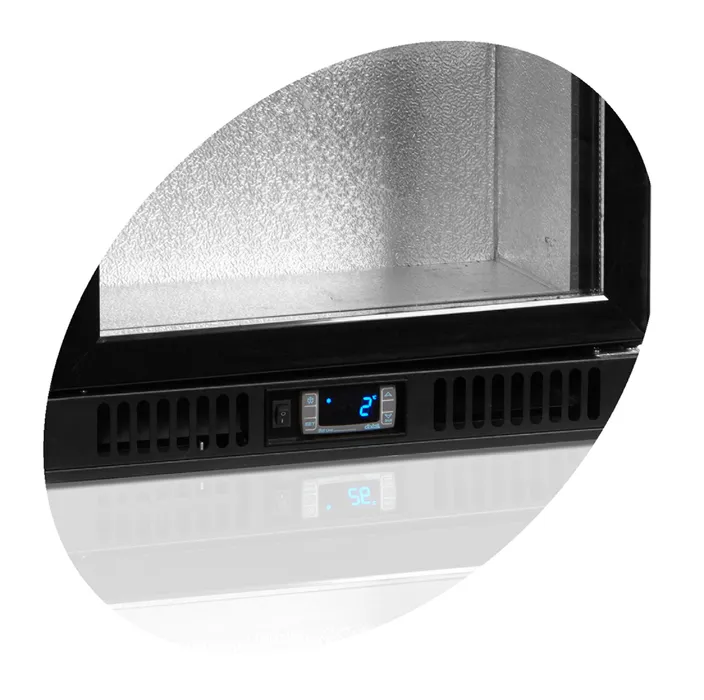

Electronic thermostat

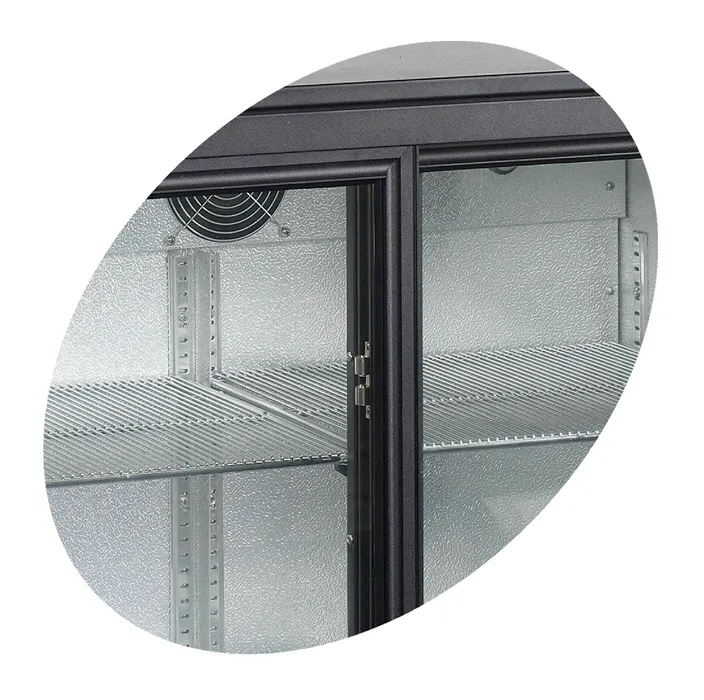

Door holder for loading of the cabinet
Backbar Cooler
BA30S-3
Product.ItemNumber: 15844
Product.Brand: TEFCOLD
- Double glazed tempered glass
- Self-closing sliding glass doors
- Easy access electronic thermostat
- Adjustable shelves
- Adjustable feet
- LED interior light
- Ventilated cooling
ProductDetail.TechnicalSpecificationHeader
Measures and Content
- Gross / Net Weight113 / 108 kg
- Bottles 330 ml218 pcs
- Bottles 500 ml PET218 pcs
- Cans 330 ml380 pcs
- Cans 500 ml266 pcs
- Total Display Area0.84 m²
- Temperature Range+2 to +10 °C
- Climate Class4
- Gross / Net Volume311 / 288 l
Design and Material
- Exterior FinishBlack
- Interior FinishStucco aluminium
- Door No & Type3 sliding glass doors
- Shelves No & Type6 wire shelves chrome
- Feet / Legs5 adjustable feet
- Interior LightLED
- Lock
Cooling and Functions
- Type of ControllerElectronic
- Type of CoolingVentilated
- Type of DefrostAutomatic
- Refrigerant Charge90 g
- RefrigerantR290
- Thermometer
Power and Consumption
- Energy ClassC
- EPREL No465853
- Annual Energy Cons.1826 kWh/year
- Energy Consumption5 kWh/24h
- EEI33 %
- Input Power320 W
- Voltage / Frequency220-240/50 V/Hz
- Noise Level45 dB(A)
Dimensions
- 40ft Container Load 64 pcs
- GTIN / EAN5708181501266
- External Dimension (WxDxH)1355 x 515 x 900 mm
- Internal Dimension (WxDxH)1257 x 345 x 730 mm
- Packed Dimension (WxDxH)1430 x 600 x 950 mm
ProductDetail.DownloadsHeader
ProductDetail.SparePartsHeader
- 03
Product.ItemNumber 14291Evaporator - 04
Product.ItemNumber 14528Heat Exchanger - 07
Product.ItemNumber 13411Evaporator Fan 12 VDC - 08
Product.ItemNumber 13435Evaporator Fan Cover - 09
Product.ItemNumber 13561Finger Guard - 10
Product.ItemNumber 15593LED Light 445 mm - 11
Product.ItemNumber 10107Silicone Pad - 12
Product.ItemNumber 15416Lamp Cover - 13
Product.ItemNumber 15356End Piece For Lamp Cover - 14
Product.ItemNumber 14638Complete Side Wheel - 15
Product.ItemNumber 12424Spring 90cm - 16
Product.ItemNumber 12000Door Frame Connection - 17
Product.ItemNumber 12227Fixation Of Spring (Top) - 18Product.ItemNumber 11990Door Frame
- 19Product.ItemNumber 12286Glass Door Complete Left
- 20
Product.ItemNumber 12169Door Spring Middle - 21Product.ItemNumber 12289Glass Door Complete Middle
- 22
Product.ItemNumber 12182Door Stop Top - 23Product.ItemNumber 12296Glass Door Complete Right
- 25
Product.ItemNumber 12197Door Wheel - 26
Product.ItemNumber 10713Lock With Keys - 27
Product.ItemNumber 10667Extra Keys - 28
Product.ItemNumber 12184Door Stopper Bottom - 30
Product.ItemNumber 12425Stay Fastener - 31
Product.ItemNumber 12391Sealing Left/Right - 32Product.ItemNumber 12392Sealing Strip Between Doors
- 39
Product.ItemNumber 15125Shelf Side 400x315 mm - 40
Product.ItemNumber 15103Shelf Middle 430x315 mm - 41
Product.ItemNumber 14994Rail For Shelves - 42
Product.ItemNumber 15084Shelf Clip - 43
Product.ItemNumber 14401Evaporator Cover - 45
Product.ItemNumber 13951Thermostat Box - 46
Product.ItemNumber 14062Thermostat XR02CX Blue - 46Product.ItemNumber 38636Thermostat Blue
- 46
Product.ItemNumber 42057Thermostat DT-01 - 47
Product.ItemNumber 13873NTC Probe - 47
Product.ItemNumber 42060NTC Probe for Thermostat DT-01 - 48
Product.ItemNumber 13748Light switch black - 50
Product.ItemNumber 10844Bottom Panel - 53
Product.ItemNumber 14571Adjustment Feet - 59Product.ItemNumber 13364Condenser Fan Foot
- 60
Product.ItemNumber 13371Condenser Fan Motor ECM - 61Product.ItemNumber 13484Fan Blade 200 mm For CA03
- 62
Product.ItemNumber 14143Condenser - 63
Product.ItemNumber 13726Wire Clamp - 65
Product.ItemNumber 10048Dry Filter Bracket - 66
Product.ItemNumber 15710Filter Drier - 67Product.ItemNumber 11715Compressor FTH60/LK68CU1 R290
- 68
Product.ItemNumber 11496Drip Tray - 69
Product.ItemNumber 10783Back Plate - 70Product.ItemNumber 13652Junction Box
- 71
Product.ItemNumber 13690Power Supply - 72
Product.ItemNumber 10030Bracket For Power Supply - 73
Product.ItemNumber 13728Wire Holder
